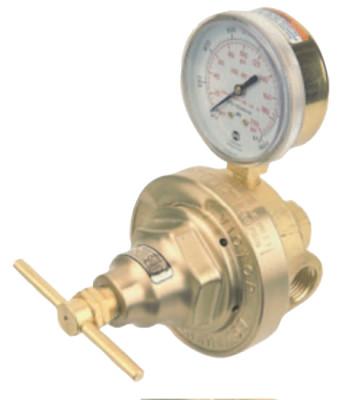

Esab Welding Professional Line L 700 High Flow Line Regulator, L700D-500 PMT, Extra HD, Air/Inert Gas/Oxygen, CGA-500, 125 psig, 0780-1236
$ 761.82
- Forged brass body and housing cap
- Stem type seat mechanism
- Delrin® cap bushing for smooth adjustments
- Designed for gas distribution system (pipeline)
- Not for use on cylinders
- Pack of 1 EA
- Manufacturer part number: 0780-1236
- UPC Code: 716352035286
Specifications:
- Applications = Automotive; Construction; Demolition; Medical; Metal Art; Mining; Ranching; Scrap; Shipbuilding; Testing
- Body Material = Brass
- Case Material = Brass
- Depth [Nom] = 6 in
- Diaphragm Material = Fabric-Reinforced Neoprene
- Diaphragm Size = 3-1/4 in
- Flow Range = 5 to 125 psig
- Gas Type = Air; Inert Gas; Oxygen
- Gauge Size = 2-1/2 in
- Height [Nom] = 7 in
- Inlet Connection = CGA-500 PMT; 1/2 in NPT (F)
- Inlet Pressure [Max] = 350 psig
- Inlet Size = 1/2 in
- Outlet Connection = 1/2 in NPT (F)
- Outlet Pressure [Max] = 125 psig
- Outlet Pressure [Min] = 5 psig
- Outlet Size = 1/2 in
- Series = L700
- Style = L700D-500 PMT Model
- Type = High Flow Line Regulator; Panel Mount
- Used With = Gas Cutting Equipment
- Width [Nom] = 4 in
- This is a normal stocking item.
