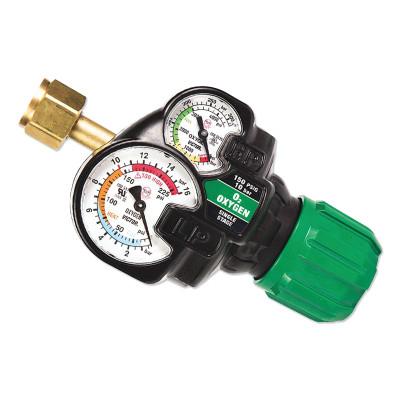

Esab Welding EDGE Series 2.0 Regulators, 0781-3632
$ 500.84
- Heavy-duty, high-capacity single stage cylinder regulators feature new and improved gauge designs
- Larger faced delivery gauge (low pressure) with high contrasted colored face for easy setting
- Enhanced color-coded knob designs provide more comfortable operations
- Fully enclosed, highly visible modular gauges for more clarity with robust metal gauge guard
- Robust seat gives optimum performance
- Consistent pressure and flow delivery
- High resistance to oxygen related fires
- SLAM knob absorbs impact in the event of a cylinder fall
- Pack of 1 EA
- Manufacturer part number: 0781-3632
- UPC Code: 716352604079
- ELT; CGA E-4; UL252; ASTM G175
Specifications:
- Body Diam = 3.6 in
- Body Material = Brass
- Connection Type = 9/16 in - 18 LH (Outlet); CGA 510LP (Inlet)
- Diaphragm Material = Neoprene
- Gas Type = Propane; Natural Gas
- Gauge Size = 2 in
- Inlet Connection = CGA 510LP
- Inlet Pressure [Max] = 350 psig
- Outlet Connection = 9/16 in - 18 LH
- Outlet Pressure [Max] = 125 psig
- Outlet Pressure [Min] = 5 psig
- Outlet Size = 9/16 in
- Quantity = 1 each
- Series = ESS3
- Thread - TPI or Pitch = 18
- Type = Regulator
- Used With = Gas Cutting Equipment
- This is a normal stocking item.
