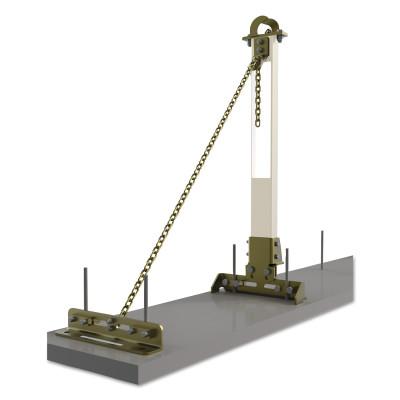

Converts your SecuraSpan™ I-beam system to concrete rebar/shear stud for flexibility and economy
Integrated system has a wide range of adjustment for greater jobsite flexibility and versatility
Lightweight and portable design provides fast and easy handling, installation and storage for maximum worker productivity
All adjustments are made from the top of the beam for added ease of installation and complete user safety
Extremely rugged zinc plated steel construction provides corrosion resistance for longer service life
Provides complete customization of your system depending upon the clearance below the work area and overall length needed
The multi-span intermediate provides bypass capabilities for continuous connection, there is no need to disconnect and reconnect offering complete horizontal mobility and 100% protection
System capacity of two workers per span, with a maximum of six workers on multi-span systems provides added jobsite flexibility
Modular design and individual components allow you to completely customize your system any way you want it for ultimate jobsite versatility
Extremely lightweight and portable, these systems incorporate a modular, multi-base design that accommodates a wide range of steel and concrete beams
Pack of 1 EA
Manufacturer part number: 7400054
UPC Code: Unavailable
Specifications:
Fastening Method = Pass Through Bracket
Includes = Rebar/Shear Stud Base
Style = Retrofit Kit
Wt. = 21.5 lb
Wt. Cap. [Nom] = 310 lb
This item is a non-stock item. Lead time may be upwards of 4 weeks.
